Importing Your Hookup
Import your Lighting Hookup to The Notes List to help streamline your work notes. The Notes List can provide desired fixture information in your export to improve communication for these notes.
This page will dive into integrations via one of the three main categories:
- Lighting Hookup Import
Lighting Hookup importing can be crucial when addressing your lighting note taking processes. Importing the hookup to The Notes List will allow for the typical fixture information you'd find in industry standard lighting paperwork to be provided directly in the note export.
Such information as (but not limited to):
- Position
- Unit Number
- Fixture Type
- Wattage

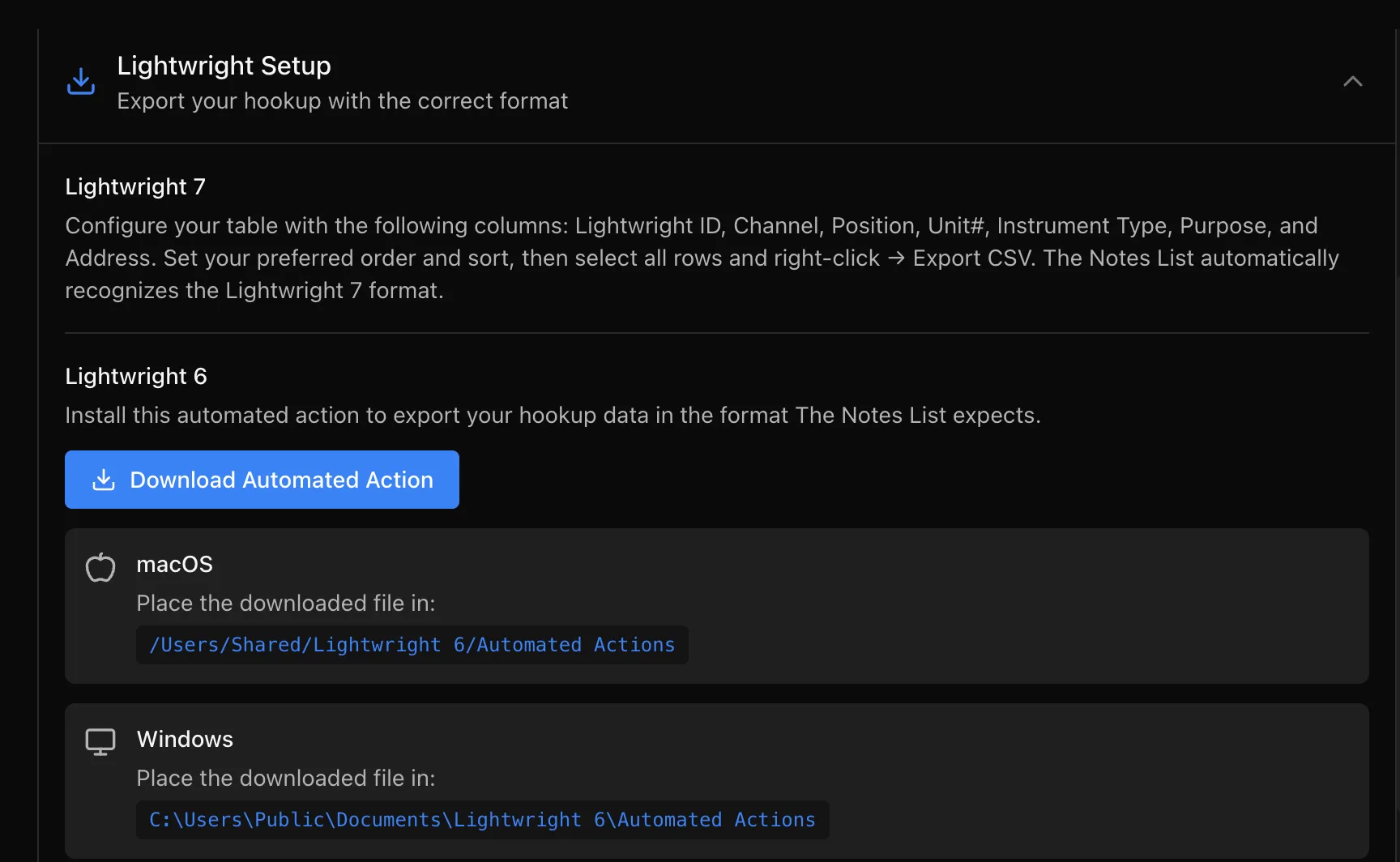

Lightwright Export for The Notes List Import

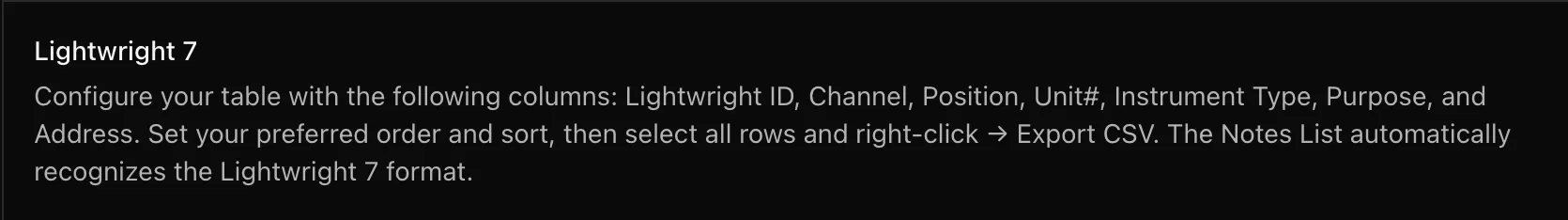

Lightwright 7:
Lightwright 6:
The Notes List offers a download for an automated action for LW6 to organize an export specifically for TNL's import. This download can be found directly in the Import Hookup CSV window.

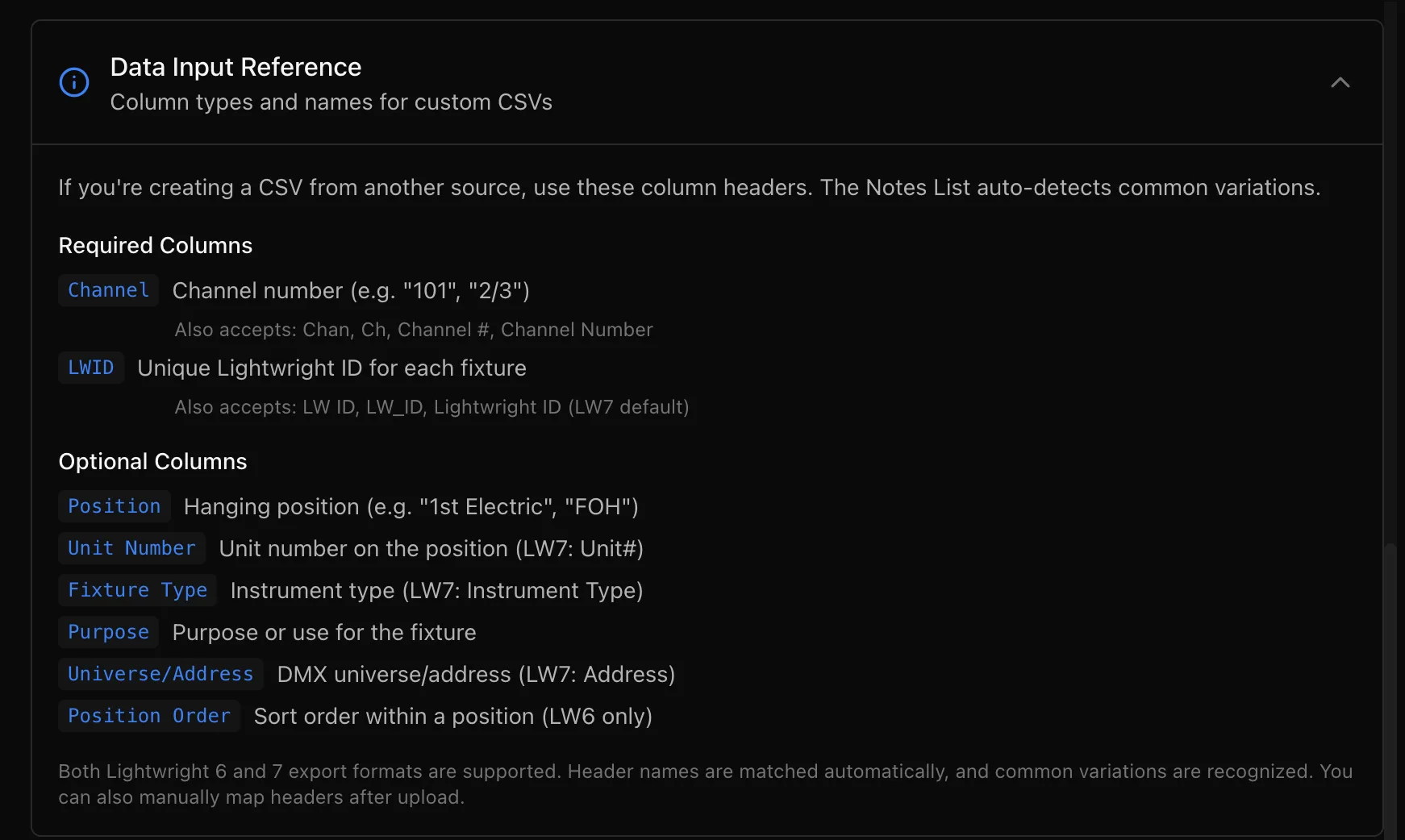

Creating Custom CSV
If you are creating your own CSV please note these instructions:
